Gravity toggle KM 10

The cavity fixing for different board thicknesses and large usage lengths.

With the fischer gravity toggle KM 10, wash basins and urinals are fixed to installation and cavity walls. The gravity toggle is inserted in the pre-position installation into the drill hole and automatically folds out behind the panel. A special installation tool is not needed and this allows comfortable and quick installation. The wide transition beams guarantee a good load distribution. This achieves a high load-bearing capacity. The rubber washer seals the drill hole against moisture.

Opis proizvoda

Advantages
  • The wide transition beams ensure a good load distribution. This achieves a high load-bearing capacity.
  • The rubber washer provided seals the drill hole.

Dostupne verzije proizvoda


1 pronađeno verzija proizvoda

1 pronađeno verzija proizvoda

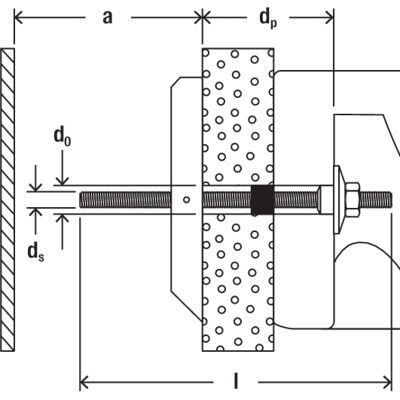

Verzija
Drill diameter

d0

Max. panel thickness

dp

Min. cavity depth

a

Anchor length

l

Broj artikla 050326

30 [mm]

90 [mm]

140 [mm]

180 [mm]

Pregledano 1 od 1 verzija
0

Primjena i dozvola

Applications
  • Wash basins and urinals in various designs
Building materials
  • Gypsum plasterboard and gypsum fibreboards
  • Chipboard
  • Plywood boards
* Detaljne informacije o građevinskom materijalu možete pronaći u registracijskom dokumentu.

Uputa za sastavljanje

Functionality
  • When placed in the drill hole, the supporting element independently swings open behind the board.
  • The KM 10 is specially suited to fixing wash basins and urinals into installation and cavity walls.
  • No special installation tool required. For a fast and convenient installation.
Mounting Strip 1 Picture
Mounting Strip 1 Picture
Mounting Strip 1 Picture
Mounting Strip 1 Picture
Mounting Strip 1 Picture
Mounting Strip 1 Picture
Mounting Strip 1 Picture
Mounting Strip 1 Picture
Mounting Strip 1 Picture
Mounting Strip 1 Picture
