fischer bolt anchor FAZ II Plus 10/80 ZP electro zinc plated

Name: fischer bolt anchor FAZ II Plus 10/80 ZP electro zinc plated
Brand: fischer

Produkt varijante

Download of image data

Top Features

Quick and easy assembly without the need for drill hole cleaning (M8-M24).
Decisive increase in tensile load-bearing capacity due to the new assessment (ETA) - fewer fixing points and smaller anchor plates save time and costs.
Millimeter accurate adjustment to the loads due to the variable anchoring depths.
Highest seismic loads for diameters M10-M24 with and without the use of the filling disc FFD.

Br.-art. 558790
FA-ST II M10
Br.-art. 531795
SDS Plus II 10/250/310
Br.-art. 077937
FABS
Br.-art. 549927
Quattric II 10/250/315 S
Br.-art. 567792
Blow-out pump AB G

For highest demands. Powerful and flexible.

Advantages

Quick and easier assembly without the need for drill hole cleaning (M8-M24).
Numerous approval certificates for different substrate materials (concrete C12/15-C80/95, steel fiber concrete, solid sand-lime brick) increase the number of applications and fields of use.
With the new assessment (ETA), the tensile strengths increase decisively. As a result, fewer fixing points and anchors are required.
The new ETA confirms the use of the FAZ II Plus for dynamic loads for diameters M16-M24.
The fast installation process of the FAZ II Plus provides an efficient fixing solution for dynamic applications with low load cycles (M16-24) with an immediately loadable fixing point.
The ETA evaluation, together with other test reports (RWS, ZTV, ETK), ensures high loads in case of fire.
The FAZ II Plus allows the absorption of high seismic loads of performance category C1 and C2 for diameters M10-M24 with and without the use of the filling disc FFD at installation.

The fischer bolt anchor FAZ II Plus is the steel anchor for the highest demands with high tensile strengths and a wide range of applications. Heavy loads can be secured in cracked concrete using the steel anchor. The FAZ II Plus is easier and faster to set due to the elimination of drill hole cleaning (M8-M24). The tried-and-tested expansion clip safely introduces the loads into the concrete and enables an immediately loadable, high load-bearing capacity. For example, the steel anchor is ideal for the anchoring of railings, cable trays, and consoles.

Applications

Steel constructions
Guard rails
Consoles
Ladders
Cable trays
Machines
Staircases
Façades
Timber constructions

Building materials

Approved for:

Concrete C20/25 to C50/60, cracked and non-cracked

Suitable for:

Concrete C12/15 (classification available)
Concrete C80/95 (classification available)
Steel fiber concrete (classification available)
Solid sand-lime brick (classification available)

Primjenjuju se pojedinosti (građevinski materijali, opterećenja itd.) bilo kojeg dostupnog odobrenja. Dodatne dokumente možete pronaći u Download Center.

Atesti

ETA-19/0520
DoP No. 0334
3023222
ESR-2948
BZS D 23-607
EPD-Kiwa-EE-181454-EN

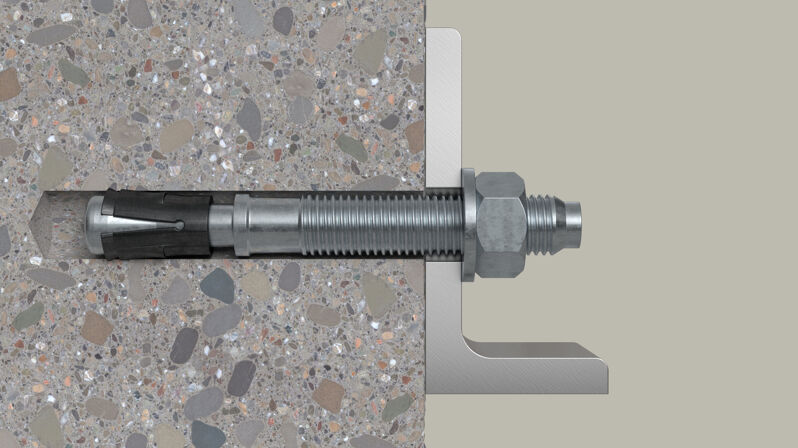

Functionality

The FAZ II Plus is suitable for pre-positioned and push-through installation and is also ideal for stand-off installation thanks to the long thread.
When applying the torque, the cone bolt is pulled into the expansion sleeve and expands it against the drill hole wall.
The anchor is set in line with the approval once the preset installation torque is achieved.
In the case of series installation, we recommend using the FABS or FA-ST II anchor bolt setting tools.

Mounting Strip 1 Picture

1 / 5

Mounting Strip 2 Picture

1 / 6

Mounting Strip 3 Picture

1 / 8

ETA Certification Document

pdf, ETA-19/0520

European Technical Assessment for fischer Bolt Anchor FAZ II Plus, FAZ II Plus R, FAZ II Plus HCR - Mechanical fasteners for use in concrete

izdato 24. 05. 2023.

DOP - Declaration of Performance

pdf, DoP No. 0334

Declaration of Performance for for fischer Bolt Anchor FAZ II Plus, FAZ II Plus R, FAZ II Plus HCR (Mechanical anchor for use in concrete)

izdato 31. 05. 2023.

Factory Mutual

pdf, 3023222

FM Approval - Certificate of Compliance

ICC Certification

pdf, ESR-2948

ICC-ES Evaluation Report

Vrijedi od 01. 01. 2024.
do 31. 01. 2026.

Swiss shock certifcate

pdf, BZS D 23-607

Approval for fischer Bolt Anchor FAZ II Plus, FAZ II Plus R, FAZ II Plus HCR M10 - M24

Vrijedi od 24. 07. 2023.
do 30. 06. 2033.

EPD - Environmental Product Declaration

pdf, EPD-Kiwa-EE-181454-EN

Environmental Product Declaration for fischer Bolt anchor FAZ II Plus ZP

Vrijedi od 16. 12. 2024.
do 16. 12. 2029.

Load Table

pdf,

Bolt anchor FAZ II Plus - Permissible loads of a single anchor in normal concrete of strength class C20/25.

Load Table

pdf,

Bolt anchor FAZ II Plus dynamic - Design values for cyclic fatigue loading of a single anchor in cracked or non-cracked normal concrete of strength class C20/25.

Marketing Documents

pdf,

FAZ II Plus.

ETA-approval
ICC-approval
Seismic-Approval	C1 / C2
Drill diameter ( d₀ )	10 mm
Min. drill hole depth for through fixings ( h₂ )	155 mm
Max. usable length hef,stand./hef,min. ( t_fix )	80 / 100 mm
Anchor length ( l )	165 mm
Thread ( ø x length )	M10 x 123 mm
Width across nut	17 mm
Installation torque ( T_inst )	45 Nm
Amount	20 pcs
GTIN (EAN-Code)	4048962462081
