fischer roof hook GT 150 A2 stainless steel A2

Name: fischer roof hook GT 150 A2 stainless steel A2
Brand: fischer

Produkt varijante

Download of image data

Top Features

Wide base for easy fixing on continuous bearing supports.
Made of AISI 304 stainless steel.

Br.-art. 572211
SolarFish H33 4.85 m AL
Br.-art. 572209
SolarFish H33 2.50 m AL
Br.-art. 572210
SolarFish H33 3.65 m AL
Br.-art. 572451
SolarFish H33 3.65 m AL black

The fixed hook for tiled roofs

Advantages

The accessories for connecting to the Solar rails are already included in the package.
The wider base plate with ø9 mm holes makes connection with the supporting structure easy.
The GT hooks are available in two heights (130 and 150 mm) for full compatibility with all types of tiles and with the centre distances of the supporting structure.

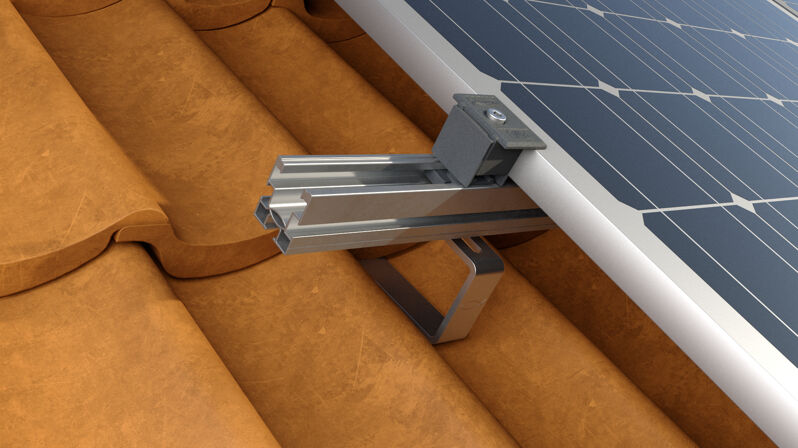

GT is the AISI 304 stainless steel hook for building structures for photovoltaic systems on tiled roofs with ventilation strip. The wide base plate makes it easy to engage the load-bearing part of the support in case of discontinuous structures. Screws for connection to the profile are supplied.

Properties

X5CrNi 18-10 stainless steel hook in accordance with EN 10088-2:2005.
Class A2-70 stainless steel bolts in accordance with EN ISO 3506-1/2:2010.

Thickness ( S )	5 mm
Under tile height ( h₁ )	68
Total height	150 mm
Depth ( D )	97 mm
Width across nut	13 mm
Installation torque ( T_inst )	10 Nm
Weight	0,6 kg
Contents	10 x Hook GT A2 10 x Hexagon head screw SKS M8 x 20 A2 10 x Hexagon nut MU F M8 A2
Amount	10 pcs
GTIN (EAN-Code)	8001132711361
