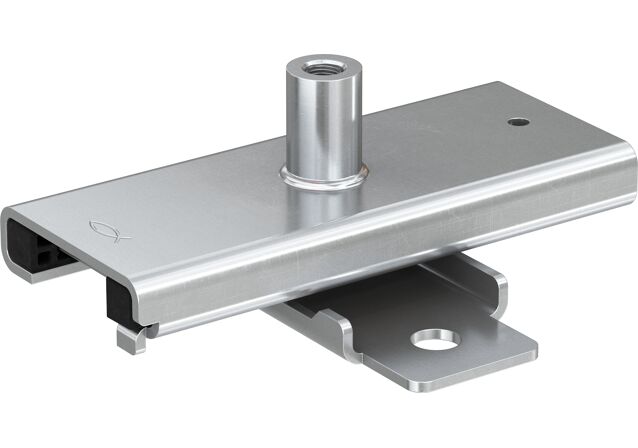

fischer Axial Slider medium FASM1 M10/12 electro zinc-plated zp

Name: fischer Axial Slider medium FASM1 M10/12 electro zinc-plated zp
Brand: fischer

Produkt varijante

Download of image data

Top Features

Fire test report according to MLAR R30 up to a maximum of R120.

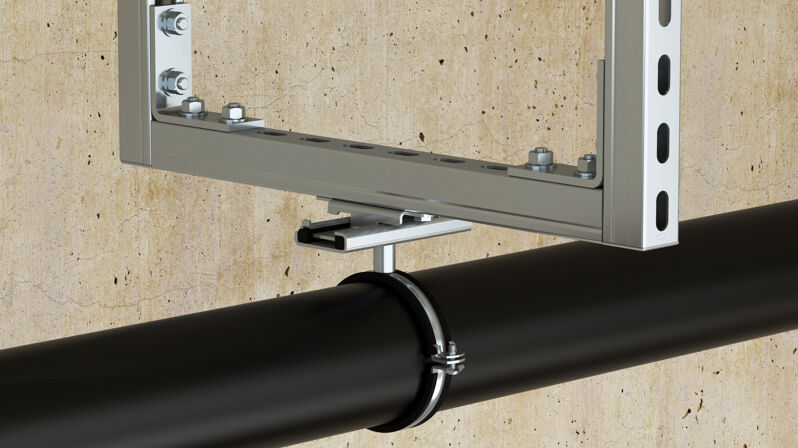

Application as upright or hanging slider.
Sliding path of 100 or 150 mm possible.
Compatible with the FUS and FMS channel systems.

Br.-art. 091461
GS M12 x 100
Br.-art. 091443
GS M12 x 60
Br.-art. 079767
GS M10 x 60
Br.-art. 079735
MU M10
Br.-art. 079769
GS M10 x 100
Br.-art. 079768
GS M10 x 80
Br.-art. 024650
MU M12

The medium axial slider with single or double mount and combination connection thread

Advantages

The fire test report according to MLAR R30 up to a maximum of R120 guarantees objectively tested safety of function.
The FASM can be used flexibly, thanks to the application options as a standing or hanging slider and as a guide bearing on vertical pipelines.
The low sliding friction of the plastic sliding rails enables optimum force application at the fixed point.
The large sliding path and the long slide rails allow large expansions to be accommodated without any problems.
The base plate of the FASM is compatible with the FUS and FMS channel systems and allows fixing with one or two screws.
A cross-slide function of the FASM is possible with the FCSM cross slider as well as with the FASL2 M10.

The FASM Axial Slider is used for absorbing pipe expansions and is recommended for medium pipes up to DN150. The FASM has a maximum sliding range of 100 mm / 150 mm and a maximum load capacity of 3,0 kN. fischer offers the FASM with a metric combination thread M10/M12. The FASL can be used for upright or suspended mounting. The galvanized version is suitable for installations in buildings. The Axial Slider FASM2 guarantees an additional plus in safety thanks to the fire protection certificate.

Properties

Material: steel
Zinc plating: electro zinc-plated
Sliding strip material: glass fiber reinforced polyamide
Thermal capacity: -30 °C to +130 °C

Thread ( A )	M10 / M12
Length ( L )	160 mm
Width ( B )	140 mm
Height ( H )	63 mm
Thickness ( S )	3 mm
Max. recommended static load (suspended) ( N_rec )	2,5 kN
Max. recommended static load (upright) ( N_rec )	2,5 kN
Static friction factor ( µh )	0.13
Sliding friction factor ( µg )	0.10
Max. sliding distance	100 mm
Amount	10 pcs
GTIN (EAN-Code)	4048962482775
